FRITSCHP-14 Rotor Mill [FRITSCH, Germany]

Cat. #
제품명

14.8020.00

P-14 Rotor Mill [FRITSCH]

견적요청

● 독일 FRITSCH 제품의 Variable -Speed Rotor Mill
● 온도에 민감한 샘플 및 고분자, 플라스틱의 분쇄
● 액체질소를 이용한 동결 분쇄 가능
● 별도의 tool 없이 assembly & dis-assembly가 손쉬운 구조

Application

FRITSCH 제품의 주요 적용분야
● Analytic: Creation of samples for the chemical analysis of soil samples, slurries or plant samples, spectroscopy
● Biology: Plants, roots, leaves, needles, grains, drugs, peat, seeds, ash
● Chemistry: Chemicals, fillers, waxes, paraffins, chalk, kaolin
● Agriculture and forestry: Plants, wood, roots, leaves, needles, grains, soil (without stones), fertilisers, pellets, feed
● Foodstuffs: Rice, spices, foodstuffs for protein and nitrogen analysis, dried fruits
● Plastics and textiles: Textiles, leather, cellulose, compound materials, rubber, styrenes, powder coatings, polyester, synthetic resins, foils, PVC, PP and PE
● Pharmaceuticals: Pharmaceuticals, dragées, tablets
● Environment/rohs: Electronic parts, plastics, glass

주요 특징

FRITSCH 제품의 주요기능
● Rotor의 고속회전에 의한 miling (impact, cutting 모두 가능)
- Speed range: 2,000 ~ 24,000 rpm (Impact rotor)
2,000 ~ 18,000 rpm (Cutting rotor)
● Sample peripheral speed
- Impact rotor: 10.2 m/s ~ 121.9 m/s
- Cutting rotor: 8.8 m/s ~ 79.2 m /s
● Rotor diameter
- Impact rotor: 97 mm
- Cutting rotor: 84 mm
● Sample종류에 따라서 3가지 Type Rib 를 가진 Rotor 선택 (Impact rotor)
- 6-ribes: Fibrous substance sample 처리시
- 12-ribes: Feeding size가 10 mm 이하인 sample 처리시
- 24-ribes: Feeding size가 5 mm 이하인 sample 처리시
- Cutting rotor 3 blades
● 다양한 크기의 Sieve ring을 사용하여 분쇄샘플 입도조절
- 0.08 mm, 0.12 mm, 0.2 mm, 0.5 mm, 0.75mm
- 1 mm, 1.5 mm, 2 mm, 4 mm, 6 mm
● 효율적인 Cooling 이 가능한 시스템
- Fan이 장비 내부로 cooling air를 불어 넣어주어, 장비 및 sample의 온도상승을 막아줌
● Grinding chamber, part 를 다양한 재질로 변경 가능
- Chamber: Stainless steel, PTFE-coated
- Part: Stainless steel, titanium, TiN- & WC- coated
● 액체질소 (Liquid Nitrogen)를 이용한 극저온 동결분쇄 가능
- 플라스틱, 고분자 등 열에 민감한 샘플의 분쇄
[Sample Preparation]
1. Grinding of soft sample (leaves, grain, soft food)
- PTFE-coated lid, vessel 이용하여 grinding
- Titanium impact Rotor & Sieve ring 이용하여 grinding
2. Grinding of Medium Hard Sample (rice, wood, leather, plastics etc.)
- PTFE-coated lid and vessel 이용하여 grinding
- TiN-coated Rotor, Sieve ring 이용하여 grinding
3. RoHS Preparation
- Tungsten-carbide coated 12-ribs Rotor
- Tungsten-carbide coated Sieve ring

기타

[FRITSCH 제품특징]
1. Powerful grinding with up to 24,000 rpm of the impact rotor and up to 18,000 rpm of the cutting rotor for fast sample throughput
2. Extremely high impact speed of the impact rotor (121.9 m/s = 438.84 km/h) and cutting rotor (79.2 m/s = 285.12 km/h)
3. Max. feed size < 15 mm, sample throughput of up to 15 l/h and more
4. Final fineness < 40 μm, sieve rings 0.08 – 6 mm
5. Multifunctional with impact or cutting rotor in one instrument
6. Samples which are difficult to grind or extremely temperature-sensitive can be embrittled with the addition of liquid nitrogen and subsequently ground
7. Intelligence-Safety-Control-System for particularly safe operation
8. Batchwise or continuous grinding with FRITSCH cyclone separators
9. Patented cooling of grinding parts
10. Temperature sensor and extremely high airflow = perfect cooling of sample
11. Easy cleaning due to Clean Design
12. Removable dust filter for convenient cleaning
13. Wear-free labyrinth seal between the grinding chamber and drive motor
14.Quiet operation according to DIN EN
15. Flexible remote control
16. USB interface as well as integrated regulation for the Vibratory Feeder LABORETTE 24
17. Grinding chamber made of stainless steel 303 resp. 316L PTFE-coated
18. Grinding parts made of stainless steel 431 resp. 316L, pure titanium, hardmetal tungsten carbide or zirconium oxide

제품 동영상

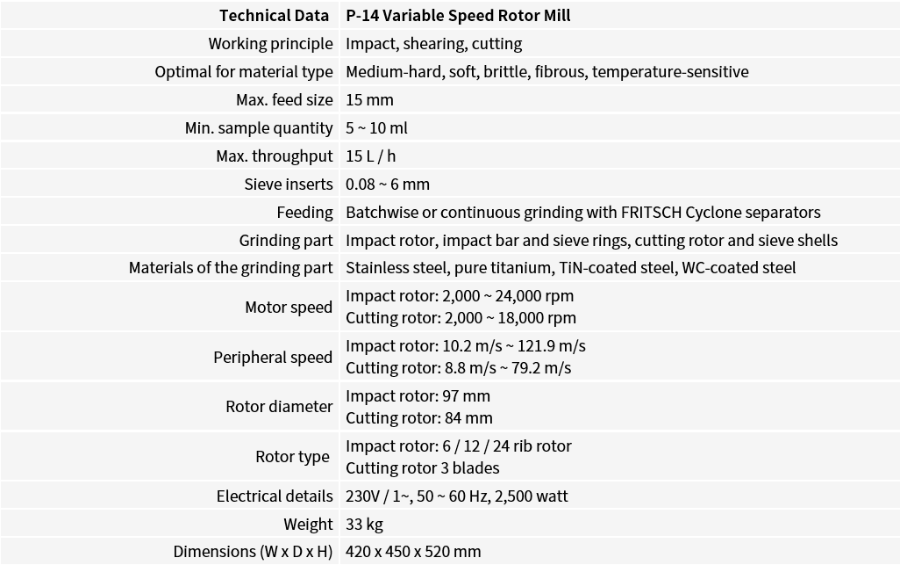

SPECIFICATION
